ELECTRON E15

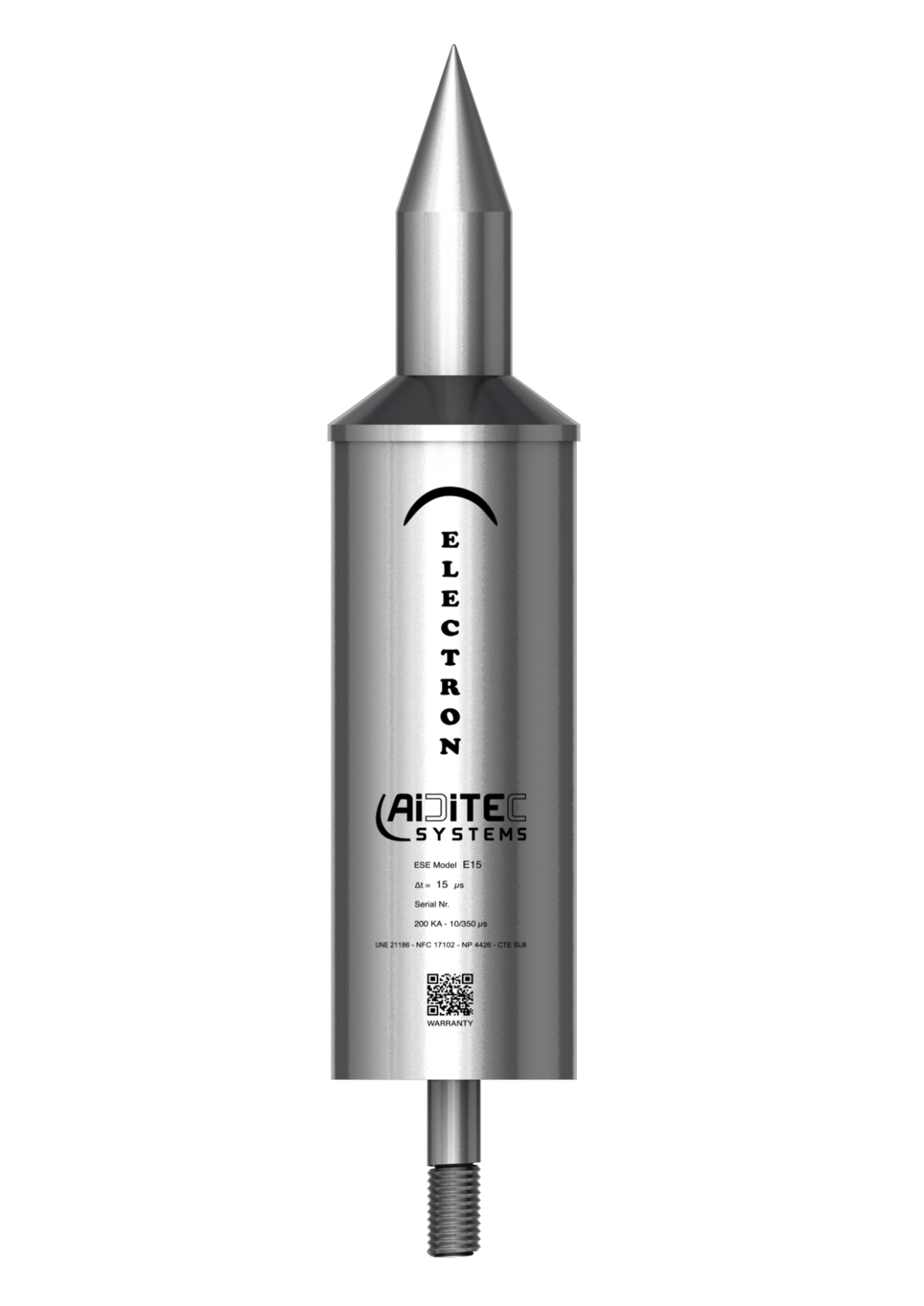

Due to its small size and incredible performance, the ELECTRON E15 lightning rod with priming device (ESE) is perfect for protecting structures and small areas such as towers, antennas, or single-family homes. This device has successfully passed the tests based on the UNE 21186, NFC 17102, and NP 4426 standards for lightning rods with a priming device:
☑️ DIMENSIONALS
Ensures that the dimensions are normalized.
☑️ SALT FOG AND SULFUROUS HUMID ATMOSPHERE
Certifies resistance in corrosive environments.
☑️ CURRENT (200kA – 10/350 µs)
It guarantees the operation after several impacts.
☑️ ADVANCE IN PRIMING
Guarantees the protection radius.
DOCUMENTS
DATA SHEET
CERTIFICATE
CATALOGUE
TECHNICAL DATA
As a result of the research carried out and the R&D projects developed, the ESE ELECTRON E15 incorporates the following new technologies:
☑️ AAA – WATER INSULATION ASSURANCE
It allows the ESE electrodes to be isolated, maintaining their potential difference at all times in extreme rain conditions due to electron displacement. By having a dual-energy block, the load of the main system is ensured.
| Material | Stainless steel AISI-316L |
| Weight | 1,8 kg |
| Withstand current | 200 kA – wave 10/350 µs |
| Operating temperature | From -40ºC to +130ºC |
| Metric | Thread M-16 x 2 |
The installation of the ESE ELECTRON E15 must be carried out following the indications of the Technical Building Code (CTE) and standards UNE 21186, NFC 17102 and NP 4426 «Protection against lightning: lightning rod with priming device». See installation guide
All models of the ESE ELECTRON E15 have successfully passed the tests based on current regulations. We certify the following lead time:
| REF. | Model | ∆T Certificate |
|---|---|---|
| AS800010 | ELECTRON E15 | 15 µs |
The radius of protection of the ESE ELECTRON E15 for a height of 6 meters in relation to the area to be protected.
| REF. | Model | Protection level | |||
|---|---|---|---|---|---|
| I | II | III | IV | ||
| AS800010 | ELECTRON E15 | 32 | 38 | 46 | 52 |
All ESE ELECTRON E15s carry an INTERNATIONAL LIMITED LIFETIME WARRANTY against all manufacturing defects. Learn more about our product warranty at: www.aiditecsystems.com/warranty
