Measuring devices

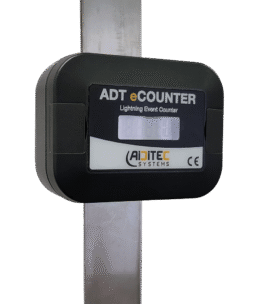

ADT eCounter
REF. AS800921
THE DIGITAL EVOLUTION OF THE LIGHTNING STRIKE COUNTER
The ADT eCOUNTER is the advanced digital version of our renowned ADT COUNTER, designed to accurately record every lightning strike received by the protection system.
Thanks to its digital technology, it allows for easier, more accurate, and accessible reading of recorded events, improving traceability and maintenance of protected installations.
Its design and materials make it robust, reliable, and self-contained. It requires no external power supply and is compatible with any lightning rod.
Documents
DATA SHEET
CATALOGUE
Technical data
| Reference | AS800921 |
Minimum current threshold (Itc) with wavw 8/20 | 1 kA |
No detection Itc/2 | 0,5 kA |
Withstand current and counted (Imcw) with wave 10/350 | 100 kA |
For max. conductor: plate/ round | 60 x 10 mm / Ø 15 mm |
IP code | IP-68 |
| Operating temperature | -20ºC … +65ºC |
| Weight | 80 gr |
| Complies with: EN 62561-6, EN 50164-6 y UTE C 17-106 | |
Installation
- Quick and easy installation.
- No need to disconnect or section the downpipe.
- Suitable for installation with any type of conductor.
The device should be located at any point along the downpipe between the protective pipe and the mast. It is inserted into the downpipe with the lowest ohmic resistance or, failing that, into the straightest and most direct downpipe to ground.
