Accessories
Everything needed for a complete installation according to standards
There are different reasons for installing a complete lightning protection system, but they could be reduced to two fundamentally:
- Having a lightning protection system is the best option to protect people, animals, structures, machinery, and facilities against this natural phenomenon.
- To comply with the regulations that regulate the installation of these systems.
At Aiditec Systems we have all the necessary accessories for the installation of these systems safely and in compliance with current regulations.
Spark gap
Spark gap for equipotential protection for connection to lightning rods and grounding.
| Reference | Material | Round conductors | Flat conductors |
| AS500550 | Stainless steel | From Ø 8 to 10 mm | Up to 30 mm |
| Complies with: IEC 62305 y EN 50164 | |||
Adaptation pieces
Adaptation piece for joining the lightning rod with the mast and internal connection with the down conductor.
| Reference | Material | Mast | For round | For plate |
| AS700100 | Stainless steel | Ø 45 x 2 mm | 2 x Ø 8/10 mm | – |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | ||||
Mast
Masts made of galvanized steel or stainless steel (optimal for highly corrosive environments) with a diameter of 45 and a thickness of 2 mm to be attached to buildings or structures with 2 supports (except 8 m masts that are fixed with 3 supports + guys).
| Reference | Material | Sections / Length | Total length (m) |
| AS700229 | Galvanized steel | 1 section / 2 m | 2 |
| AS700231 | Galvanized steel | 2 sections / 2 m | 4 |
| AS700233 | Galvanized steel | 3 sections / 2 m | 6 |
| AS700235 | Galvanized steel | 4 sections / 2 m | 8 |
| AS700270 | Stainless steel | 1 section / 2 m | 2 |
| AS700271 | Stainless steel | 2 sections / 2 m | 4 |
| AS700273 | Stainless steel | 3 sections / 2 m | 6 |
| AS700275 | Stainless steel | 4 sections / 2 m | 8 |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | |||
Masts to be installed on a concrete block embedded in the ground, made of galvanized steel and studied to withstand winds of up to 140 km/h.
| Reference | Length | Sections | Assembly | Base plate dimensions (mm) | Foundation dimensions (cm) |
| AS700306 | 6 m | 2 | Screwed | 400 x 400 x 10 | 80 x 80 x 80 |
| AS700308 | 8 m | 3 | Screwed | 400 x 400 x 10 | 80 x 80 x 80 |
| AS700310 | 10 m | 4 | Screwed | 500 x 500 x 10 | 100 x 100 x 100 |
| AS700312 | 12 m | 5 | Screwed | 500 x 500 x 10 | 100 x 100 x 100 |
| AS700315 | 15 m | 6 | Screwed | 500 x 500 x 10 | 150 x 150 x 150 |
| AS700320 | 20 m | 8 | Welded | 600 x 600 x 10 | 200 x 200 x 200 |
| AS700325 | 25 m | 10 | Welded | 750 x 750 x 12 | 200 x 200 x 200 |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | |||||
Trestle towers
Trestle tower composed by upper section of the 180 series for masts up to 45mm in diameter + connectable sections with each other through thread + center pivot. 7 mm calibrated rod in discontinuous lattice. Are necessary 3 winds with 120o angle between them.
| Reference | Material | Dimensions per section | Weight per section |
| AS700355 | Acero galvanizado | 3000 x 20 x 1,5 mm | 11 kg |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Anchors
Anchors for fixing masts up to Ø 45 mm to roofs and flat surfaces.
| Reference | Material | Tube height | Base plate dimensions |
| AS700400 | Galvanized steel | 75 cm | 300 x 300 mm |
| AS700401 | Galvanized steel | 100 cm | 500 x 500 mm |
| AS700602 | Zinc plated steel | 45 cm | 250 x 250 mm |
| AS700603 | Zinc plated steel | 75 cm | 250 x 250 mm |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | |||
Standard anchor to embed or screw. Manufactured in a «U» profile of 20 x 40 x 20 and thickness of 3 mm.
| Reference | Material | Length | Type of fixing |
| AS700624 | Galvanized steel | 20 cm | To screw |
| AS700625 | Galvanized steel | 35 cm | To screw |
| AS700626 | Stainless steel | 50 cm | To screw |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | |||
Light anchor to embed. Manufactured in a «U» profile.
| Reference | Material | Length |
| AS700440 | Galvanized steel | 35 cm |
| AS700441 | Galvanized steel | 50 cm |
| AS700640 | Stainless steel | 35 cm |
| AS700641 | Stainless steel | 50 cm |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | ||
Anchors for parallel and cross fixing of masts up to Ø 45 mm.
| Reference | Material | Length | Type of fixing |
| AS700460 | Galvanized steel | 20 cm | Parallel |
| AS700481 | Galvanized steel | 20 cm | + |
| AS700660 | Zinc plated steel | 20 cm | Parallel |
| AS700681 | Zinc plated steel | 20 cm | + |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | |||
Anchor for welding to structures. Manufactured in a «U» profile of 20 x 40 x 20 mm and thickness of 3 mm.
| Reference | Material | Length |
| AS700500 | Galvanized steel | 35 cm |
| AS700501 | Galvanized steel | 50 cm |
| AS700700 | Zinc plated steel | 35 cm |
| AS700701 | Zinc plated steel | 50 cm |
| Cumple con: UNE 21186, NFC 17102 y NP 4426 | ||
Adjustable anchor made of a 20 x 40 x 20 mm «U» profile and 3 mm thick. Fixation by screws.
| Reference | Material | Regulation |
| AS700540 | Galvanized steel | From 50 to 80 cm |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | ||
Anchors for fixing masts to turrets and lattices. Manufactured in a «U» profile of 20 x 40 and 3 mm thick.
| Reference | Material | Length | For turrets |
| AS700560 | Galvanized steel | 42 cm | Model 180 |
| AS700561 | Galvanized steel | 49 cm | Model 250 |
| AS700562 | Galvanized steel | 60 cm | Model 360 |
| AS700760 | Zinc plated steel | 42 cm | Model 180 |
| AS700761 | Zinc plated steel | 49 cm | Model 250 |
| AS700762 | Zinc plated steel | 60 cm | Model 360 |
| Complies with: UNE 21186, NFC 17102 y NP 4426 | |||
Conductors
Bare flat conductors are recommended by lightning protection regulations as downstream and ground conductors.
| Reference | Material | Dimensions |
| AS600121 | Tinned copper | 30 x 2 mm |
| AS600181 | Stainless steel | 30 x 2 mm |
| Complies with: IEC 62305, EN 50164, EN 13601, BS 7430, UNE 21186, NFC 17102, NP 4426, AS 1567, BS 6746, BS 2898, BS 6360 and AS 1866 | ||
Bare solid conductors are recommended by lightning protection regulations for use in highly corrosive environments.
| Reference | Material | Dimensions |
| AS600200 | Copper | Ø 8 mm |
| AS600260 | Galvanized steel | Ø 8 mm |
| AS600261 | Galvanized steel | Ø 10 mm |
| Complies with: IEC 62305, EN 50164, EN 13601, BS 7430, UNE 21186, NFC 17102, NP 4426, AS 1567, BS 6746, BS 2898, BS 6360 and AS 1866 | ||
Bare stranded conductors are recommended by lightning protection regulations for use in highly corrosive environments.
| Reference | Material | Dimensions | Wires |
| AS600301 | Copper | 50 mm2 | 19 |
| AS600302 | Copper | 75 mm2 | 19 |
| AS600303 | Copper | 95 mm2 | 19 |
| Complies with: IEC 62305, EN 50164, EN 13601, BS 7430, UNE 21186, NFC 17102, NP 4426, AS 1567, BS 6746, BS 2898, BS 6360 and AS 1866 | |||
Fixings for conductors
Clamps for fixing flat conductors to buildings and structures. Includes plug and screw.
| Reference | Material | For conductor | Conductor elevation |
| AS600460 | Stainless steel | Up to 30 mm wide | 10 mm |
| AS600461 | Stainless steel | Up to 30 mm wide | 60 mm with extension |
| AS600462 | Stainless steel | Up to 30 mm wide | 110 mm with extension |
| AS600481 | Nylon | Up to 30 mm wide | 25 mm |
| AS600482 | Nylon | Up to 30 mm wide | 40 mm |
| AS600450 | Stainless steel | 30 x 2 | Without extension |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Staples for fixing round conductors to buildings and structures. Includes plug and screw.
| Reference | Material | For conductor | Conductor elevation |
| AS600560 | Nylon | Ø 7 to 10 mm | 10 mm |
| AS600561 | Nylon | Ø 7 to 10 mm | 60 mm with extension |
| AS600562 | Nylon | Ø 7 to 10 mm | 110 mm with extension |
| AS600580 | Nylon | Ø 7 to 10 mm | 25 mm |
| AS600581 | Nylon | Ø 7 to 10 mm | 40 mm |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Conical support for fixing conductors to flat surfaces.
| Reference | Material | For round conductor | For flat conductor |
| AS600600 | Polypropylene | Ø 6-11 mm | 30 x 4 mm |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Spacers/extensions for fixing conductors to buildings and structures.
| Reference | Material | Diameter | Length |
| AS600680 | Stainless steel | Ø 25 mm | 50 mm |
| AS600681 | Stainless steel | Ø 25 mm | 100 mm |
| AS600690 | Brass | Ø 25 mm | 50 mm |
| AS600691 | Nylon | Ø 25 mm | 100 mm |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Supports for conductor fixation
Supports for fixing conductors to flat surfaces.
| Reference | Material | Support | For conductor | Status |
| AS600600 | Polypropylene | Conical | Ø 8 mm | Empty |
| AS600601 | Polypropylene | Conical | Ø 8 mm | Filled |
| AS600620 | Concrete | Block | Ø 8 mm | – |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | ||||
Supports for fixing conductors to tiles.
| Reference | Material | For conductor | Type |
| AS600640 | Stainless steel | From Ø 6 to 11 mm | Adjustable 170/240 mm |
| AS600641 | Stainless steel | To Ø 8 mm | Extensible 170/280 mm |
| AS600642 | Stainless steel | From Ø 6 to 10 mm | Adjustable 120/240 mm (for ridge cap) |
| AS600643 | Copper | From Ø 6 to 10 mm | Adjustable 120/240 mm (for ridge cap) |
| AS600660 | Stainless steel | To Ø 8 mm | Pressure. For 8/10 mm thickness |
| AS600661 | Stainless steel | To Ø 8 mm | Pressure. For 15/20 mm thickness |
| AS600670 | Stainless steel | From Ø 6 to 10 mm | For sandwich type roofs |
| AS600700 | Stainless steel | Not include fixing | For pipes from Ø 60 to 150 mm |
| AS600720 | Stainless steel | Not include fixing | For pipes from Ø 60 to 150 mm |
| AS600740 | Copper | Not include fixing | For pipes from Ø 60 to 150 mm |
| Complies with: EN 50164, UNE 21186, NFC 17102 and NP 4426 | |||
Support for stainless steel strip
| Reference | Material | Screw | For conductor | Tensioning strap |
| AS600750 | Stainless steel | M8 – 10 mm | Ø 8 mm | 15 x 0,4 mm |
| Complies with: UNE 21186, NFC 17102 and IEC 62305 | ||||
Joints and connections
Universal connector for round stainless steel conductors with multiple connection methods.
| Reference | Material | Dimensions | For conductor | Screw |
| AS600841 | Stainless | 40 x 40 x 40 mm | For Ø 8 to 10 mm | M-10 x 40 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||||
Cross connector for flat and round conductors and test link.
| Reference | Material | For conductor | For flat | For electrode |
| AS600823 | Stainless steel | Up to Ø 10 mm | Up to 30 x 3 mm | Up to Ø 17 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||||
T-connector for round conductors.
| Reference | Material | For conductor |
| AS600806 | Copper | From Ø 8 to 10 mm |
| AS600845 | Galvanized steel | From Ø 8 to 10 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||
Linear connector for round conductors.
| Reference | Material | For conductor |
| AS600804 | Copper | Up to Ø 10 mm |
| AS600824 | Stainless steel | Up to Ø 10 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||
Parallel connector for round conductors.
| Reference | Material | For conductor |
| AS600844 | Copper | From Ø 7 to 10 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||
Gutter connector for round conductors.
| Reference | Material | For conductor |
| AS600821 | Stainless steel | From Ø 6 to 10 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||
Bimetallic connector with an intermediate plate for flat and round conductors.
| Reference | Material | For conductor | For flat |
| AS600870 | Cu / Fe | From Ø 8 to 10 mm | – |
| AS600871 | Cu / Fe | From Ø 8 to 10 mm | Up to 30 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | |||
KS type connector for round conductors.
| Reference | Material | For conductor |
| AS600847 | Brass | From Ø 6 to 10 mm |
| AS600826 | Brass | From Ø 6 to 10 mm |
| AS600808 | Brass | From Ø 6 to 10 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||
Other accessories
Tube for the mechanical protection of the down conductor of the protection system.
| Reference | Material | Length | For conductor | For flat |
| AS600950 | Galvanized steel | 2 m | Up to Ø 15 mm | Up to 30 mm |
| AS600951 | Stainless steel | 2 m | Up to Ø 15 mm | Up to 30 mm |
| AS600952 | Cross-linked polyethylene | 2 m | Up to Ø 15 mm | Up to 30 mm |
| Complies with: IEC 62305, EN 50164, UNE 21186, NFC 17102 and NP 4426 | ||||
Rain protector to prevent the passage of water on roofs or flat surfaces where spikes or masts are embedded.
| Reference | Material | Dimensions | For spikes or masts |
| AS600965 | Neoprene | 115 x 115 x 60 mm | Up to Ø 50 mm |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Fastening and tensioning of masts by means of steel winds to prevent falls due to the effect of the wind.
| Reference | Material | Cable section | Length |
| AS700352 | Stainless steel | Ø 3 mm | 50 m |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Non-flammable insulated cable to ensure systems work in extreme conditions.
| Reference | Material | Section | Type of coating |
| AS600306 | Copper | 50 mm2 | Flame retardant |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Flexible metal tube for cable protection.
| Reference | Material | Section | Type of coating |
| AS600752 | Steel | Ø 16 mm | PVC |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||

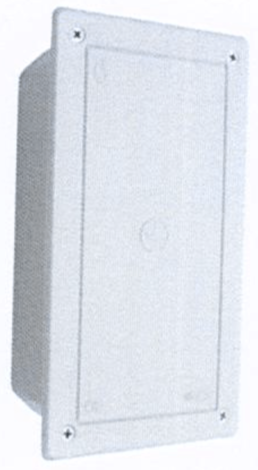

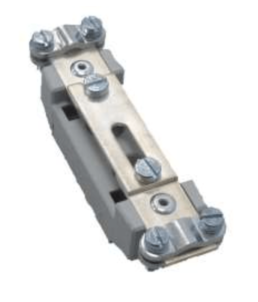

Sectionalizing box for testing grounding resistance.
| Reference | Material | Dimensions | Type of coating |
| AS600401 | Polycarbonate + ABS | 95 x 145 x 75 mm | Copper |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||
Cross-linked polyethylene protection tube against metallic shocks.
| Reference | Material | Diameter | Section | Length | Weight |
| AS600951 | Crosslinked polyethylene 3 mm | Ø 8 – 10 mm | 50 – 70 mm2 | 2000 mm | 728 gr. |
| AS600960 | Crosslinked polyethylene 3 mm | Ø 8 – 10 mm | 50 – 70 mm2 | 2500 mm | 910 gr. |
| Complies with: UNE 21186, NFC 17102 and NP 4426 | |||||
| NOTE |
| If you need an accessory with different characteristics, contact us and our technical department will advise you on the most appropriate choice. |
